Rotary Table Vertical Injection Moulding Machine with 200T Clamping Force High Productivity and 1 Year Warranty
Datos del producto:
| Lugar de origen: | PORCELANA |
| Nombre de la marca: | JINTONG |
| Certificación: | ISO9001 CE |
| Número de modelo: | JTT-2000R |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | $62,000-66,000 / piece |
|
Información detallada |
|||
| Fuerza de sujeción: | 200T | Peso de inyección: | 456-662G |
|---|---|---|---|
| Accidente cerebrovascular del eyector: | 75 mm | Fuerza de eyectores: | 48 kN |
| Volumen de disparo: | 678 cm3 | Tasa de inyección: | 212 g/s |
| Diámetro de tornillo: | 60 mm | Distancia de la barra de empate: | 760 mm |
| Peso de la máquina: | 12000 kg | Trazo abierto: | 600 mm |
| Fuerza: | 44.3 kW | Movimiento del tornillo: | 260 mm |
| Fuerza de apertura: | 22.4t | Diámetro de la tabla rotatoria: | 1500 mm |
| Dimensiones de la máquina: | 3.0*2.2*3.6m | ||
| Resaltar: | 200T Clamping Force Vertical Injection Moulding Machine,High Productivity Rotary Table Injection Moulding Machine,1 Year Warranty Vertical Plastic Injection Moulding Machine |
||
Descripción de producto

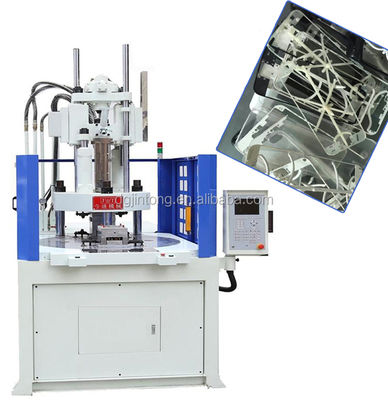

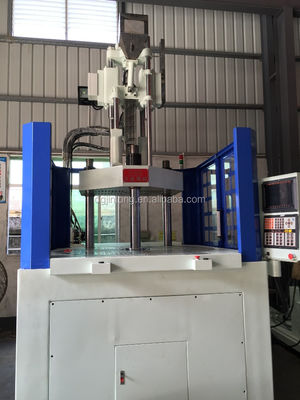

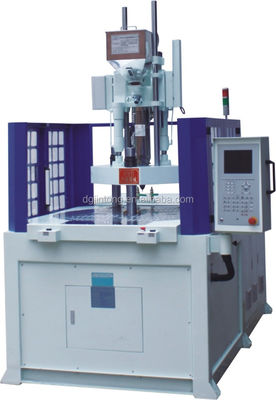

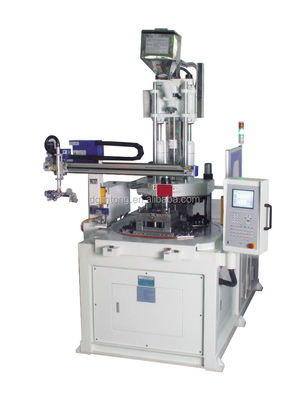

Rotary Table Vertical Plastic Injection Moulding Machine 200T (Model JTT-2000R)
Key Specifications
| Clamping Force | 200T |
|---|---|
| Injection Weight | 456-662g |
Product Description
Vertical clamping and injection system with rotary table functionality for efficient plastic molding operations.
Main Features
- Vertical clamping and injection system
- Adjustable clamping force, injection weight and shot speed
- Multiple station configurations (2, 3 or multi-station)
- Computer-controlled rotary table with forward, reverse, and alternating rotation
- Optional energy-saving motor available
- Easy torque, speed, and deceleration distance adjustment
Product Advantages
Energy Efficiency
Saves 30% energy compared to similar products using SIFU pump system
High Productivity
SIFU motor with max speed 2200/min increases oil pump output, improving productivity by over 15%
Thermal Management
Reduces cooling water requirement by 55% compared to similar machines
Quiet Operation
Optimized motor with imported bearing and oil pump reduces noise by 15-20db
Precision Molding
Closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed systematic and standardized service processes including a 24-hour response mechanism to promptly resolve customer issues.
