160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty
Datos del producto:
| Lugar de origen: | Guangdong, China |
| Nombre de la marca: | JINTONG |
| Número de modelo: | JTT-1600R: el equipo de la prueba |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | $53,500-56,000 / piece |
|
Información detallada |
|||
| Capacidad de plastificación: | 400 g/s | Altura del molde: | Las demás: |
|---|---|---|---|
| Accidente cerebrovascular del eyector: | 75 mm | Fuerza de eyectores: | 34 kN |
| Volumen de disparo: | 570 cm3 | Tasa de inyección: | 202 g/s |
| Peso de inyección: | 513 g | Velocidad del tornillo: | 1 a 155 rpm |
| Diámetro de tornillo: | 55 milímetros | Parafusos L/D: | 28 |
| Distancia de la barra de empate: | 660mm | Peso de la máquina: | 7000 kg |
| Trazo abierto: | 500 mm | Fuerza: | 22 kW |
| Dimensiones de la máquina: | 2.8*2.1*3.4 m | ||
| Resaltar: | 160T Clamping Force Vertical Injection Molding Machine,1 Year Warranty Vertical Injection Molding Machine,Vertical Clamping Plastic Injection Molding Machine |
||
Descripción de producto

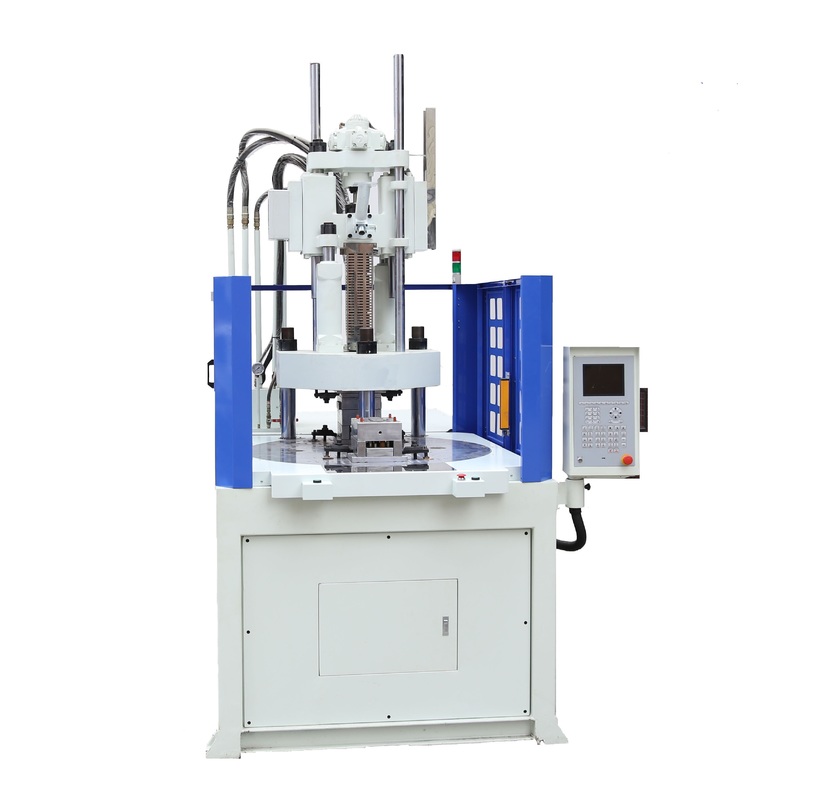

Vertical Rotary Injection Molding Machine JTT-1600R
Key Specifications
| Clamping Force | 160T |
| Injection Weight | 344-513g |
Product Features
- Vertical clamping and vertical injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table with multiple rotation modes
- Optional energy-saving motor available
- Adjustable clamping force, injection weight, and shot speed
- Multi-station configuration options (2, 3, or more stations)
Product Images
Technical Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Reduces cooling water requirement by 55%
Low noise: Optimized motor operation reduces noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder for consistent output
Service Commitment
With 17 years of experience, we've developed systematic service processes and maintain a 24-hour response mechanism to promptly address customer needs and provide optimal solutions.
Packaging & Delivery
