Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity
Datos del producto:
| Lugar de origen: | Guangdong, China |
| Nombre de la marca: | JINTONG |
| Número de modelo: | JTT-1200R |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | $32,000-40,000 / piece |
|
Información detallada |
|||
| Plástico procesado: | PP, ABS | Capacidad de plastificación: | 250 g/s |
|---|---|---|---|
| Altura del molde: | Las demás: | Número del eyector: | 2 |
| Accidente cerebrovascular del eyector: | 75 mm | Fuerza de eyectores: | 27 kN |
| Volumen de disparo: | 410 cm3 | Tasa de inyección: | 202 g/s |
| Peso de inyección: | 369 g | Velocidad del tornillo: | 1 a 220 rpm |
| Diámetro de tornillo: | 50 mm | Parafusos L/D: | 25 |
| Distancia de la barra de empate: | 620 MILÍMETROS | Peso de la máquina: | 5500 KG |
| Fuerza: | 24,5 kilovatios | ||
| Resaltar: | 2 Stations Vertical Injection Molding Machine,3 Stations Rotary Table Injection Molding Machine,250g/s Plasticizing Capacity Injection Molding Machine |
||
Descripción de producto
Rotary Table Vertical Plastic Injection Molding Machine 120T

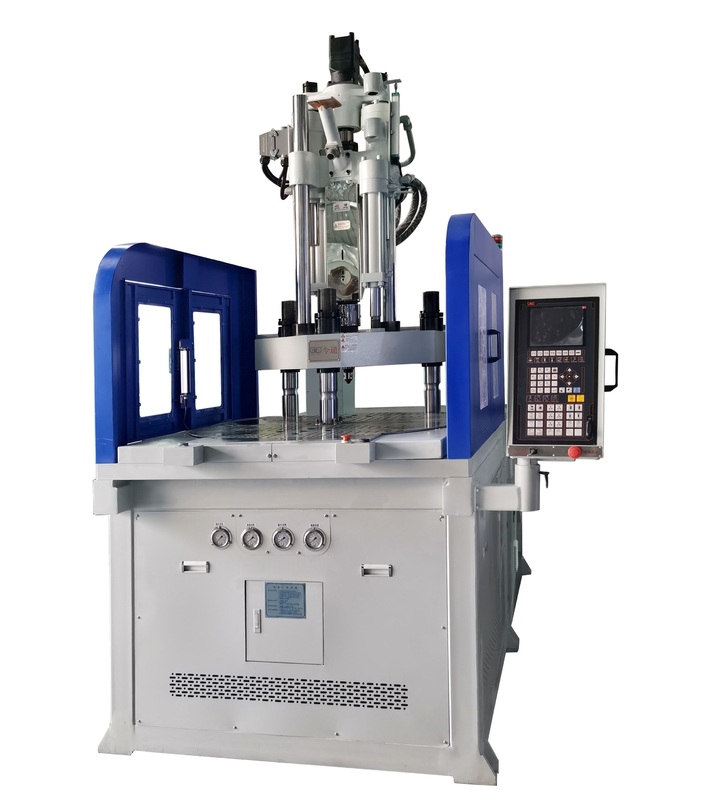

Rotary table vertical injection molding machine JTT-1200R
| Clamping Force | 120T |
| Injection Weight | 237-369g |
Vertical clamping, vertical injection. Easy to set torque, speed, deceleration distance and stand number segmentation. Computer program control for rotary table direction including forward-rotating, reverse-rotating, and forward/reverse alternative rotating. Optional energy-saving motor available.
Main Features
- Vertical clamping and vertical injection design
- Adjustable clamping force, injection weight and shot speed to meet production requirements
- Available in 2-station, 3-station or multi-station configurations (one up die, two or four down die)
- Optimized for operating insert parts and improving productivity
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Reduces cooling water quantity by at least 55% compared to similar models
- Low noise: Optimized motor operation with imported bearing and oil pump reduces working noise by 15-20db
- Precision: Fully closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.
Packing & Delivery
