55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
Datos del producto:
| Lugar de origen: | Guangdong, China |
| Nombre de la marca: | JINTONG |
| Número de modelo: | JTT-550R, también conocido como |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 pieza |
|---|---|
| Precio: | $19,000-21,000 / piece |
|
Información detallada |
|||
| Capacidad de plastificación: | 150 g/s | Altura del molde: | 160 a 300 mm |
|---|---|---|---|
| Número del eyector: | 2 | Accidente cerebrovascular del eyector: | 60 mm |
| Fuerza de eyectores: | kN 1,8 | Volumen de tiro teórico: | de una masa de 70 g/m2 |
| Tasa de inyección: | 113 g/s | Peso de inyección: | 141 gramos |
| Velocidad del tornillo: | 0 a 215 rpm | Diámetro de tornillo: | 40 mm |
| Relación L/D: | 22 | Distancia entre las barras: | 510 milímetros |
| Peso: | 2400kg | Trazo abierto: | 540mm |
| Fuerza: | 12,8 KILOVATIOS | ||
| Resaltar: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
Descripción de producto
Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description

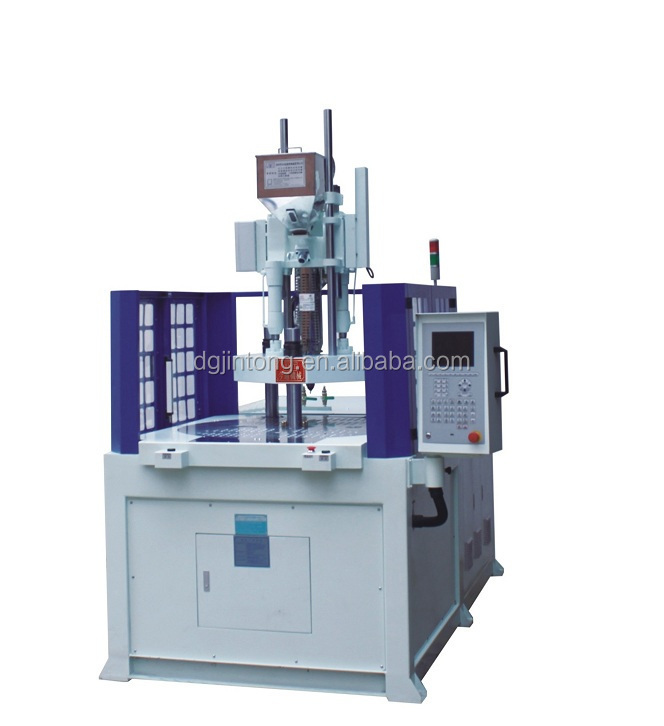

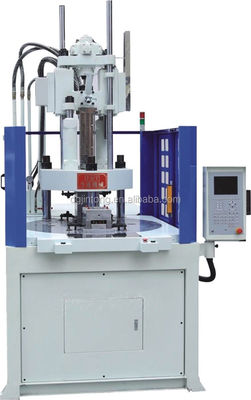

Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications

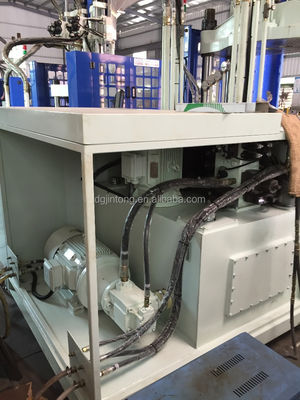

Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
